If you’ve been searching for clear answers on star dental handpiece repair for either of these models, here’s what you need to know: both the Star 430 SWL and the Star 430 Lube-Free are reliable instruments when maintained correctly, but they fail for different reasons, cost different amounts to repair, and reward different workflows.
Here’s what to know about each model’s longevity, maintenance needs, and how often they need star dental handpiece repair:
Key Takeaways
- The Star 430 SWL (lubricated) generally lasts longer with consistent daily maintenance, specifically oiling after every patient and a 10-second air purge before autoclaving.
- The Star 430 Lube-Free is not maintenance-free. It requires weekly chuck cleaning and daily cleaning protocols and accidentally oiling it even once can permanently damage the bearings.
- Lube-Free repairs cost nearly twice as much ($179 vs. $99.95 for bearing replacement) due to the specialized sealed ceramic bearing design, though they come with a longer 1-year warranty at Handpiece Express.
What Is the Star 430 SWL (Lubricated)?

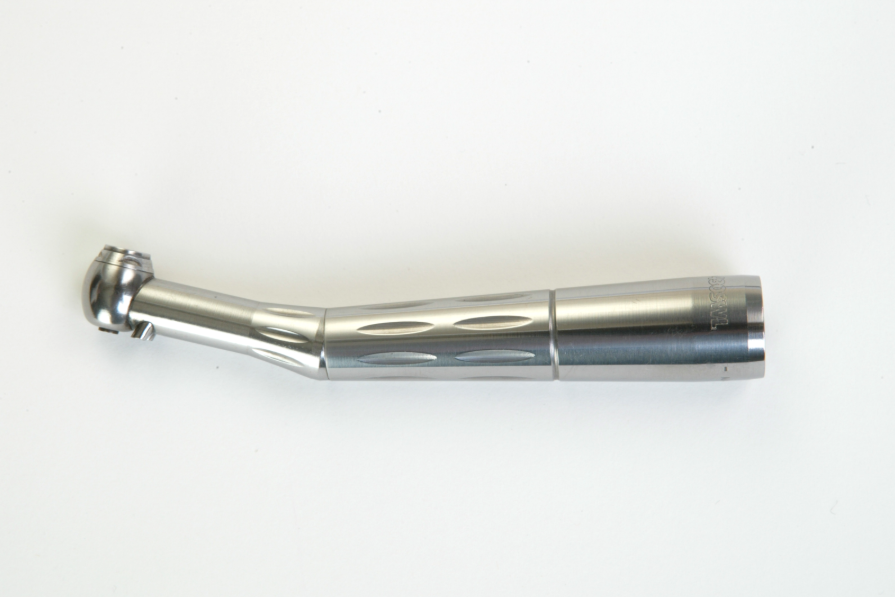

The Star 430 SWL is the standard lubricated version of Star’s long-running 430 series high-speed handpiece. It uses open ceramic bearings that require a light coat of oil after every patient. That daily lubrication is what keeps the bearings running smoothly and flushes out the fine debris that builds up inside the turbine head during normal use.
What defines the SWL:
- Open ceramic bearings that need daily oiling to function
- Lubrication continually flushes microscopic debris from the bearing chamber
- Same lightweight small-head design and push-button autochuck as the Lube-Free model
- Requires an air purge (10 full seconds) before every autoclave cycle to clear residual oil and moisture
- With consistent care, generally outlasts the Lube-Free model
Who typically uses it:
Practices with consistent, trained staff who follow post-patient protocols without shortcuts. When the maintenance routine is tight, the SWL rewards you with a longer service life.
What Is the Star 430 Lube-Free?
The Star 430 Lube-Free uses permanently sealed, grease-packed ceramic bearings. The seal keeps the factory lubricant contained inside the bearing for the life of the turbine, no daily oiling required. The turbine carries a distinct part number from the SWL, though the body, head size, and autochuck system are the same.
What defines the Lube-Free:
- Sealed ceramic bearings with factory-packed grease, never add oil to the turbine
- Autoclave heat is the primary wear factor; seals degrade over time from repeated sterilization cycles
- Push-button autochuck still requires weekly cleaning and light lubrication with a chuck cleaner (such as Star’s Junk-Out kit)
- Daily external cleaning and internal line clearing with isopropyl alcohol and syringe air before each sterilization cycle
- If oiled even once, the factory grease breaks down, and the turbine must be oiled from that point forward for the rest of its life
Who typically uses it:
Practices that prefer to eliminate the daily oiling step, or those using automated sterilization workflows where individual oiling after each patient is not standard practice.
Side-by-Side Comparison
|
Feature |
Star 430 SWL (Lubricated) |
Star 430 Lube-Free |
|---|---|---|
|
Bearing type |
Open ceramic, requires oiling |
Sealed, permanently grease-packed ceramic |
|
Daily maintenance |
Oil after every patient + 10-sec air purge before autoclave |
External swab + internal line clearing; no turbine oil |
|
Weekly maintenance |
None specified |
Chuck cleaning with Junk-Out or equivalent |
|
Primary failure cause |
Debris accumulation; skipped lubrication or purge |
Seal degradation from autoclave heat |
|
If maintenance is skipped |
Bearing wear, noise, sticking chuck |
Seal breakdown, overheating, turbine failure |
|
Bearing replacement cost (HX) |
$99.95 |
$179.00 |
|
New turbine cost (HX) |
$189.00 |
$259.00 |
|
HX repair warranty |
6 months |
1 year |
|
Longevity with proper care |
Longer |
Slightly shorter |
|
Best for |
High-consistency maintenance workflows |
Practices eliminating daily oiling |
In general, the Lube-Free model costs significantly more to repair but carries a longer warranty at Handpiece Express. The SWL costs less to maintain and typically lasts longer, but only when the daily protocol is followed every time.
Why These Differences Matter for Your Practice
The two most common, and preventable, ways these handpieces fail early:
Oiling a Lube-Free turbine
This is the most frequent mistake in practices that have both models in rotation. Handpiece oil strips the factory-sealed grease from the Lube-Free bearings, causing immediate friction, heat, and accelerated wear. One accidental oiling forces the handpiece into a permanent lubrication routine for the rest of its life.
Skipping the pre-autoclave purge on the SWL
For lubricated models, failing to run 10 seconds of air through the handpiece before the autoclave cycle traps old oil and moisture inside the bearing chamber. That residue bakes on during sterilization, accelerating bearing wear far faster than normal use ever would.
Which Model Is Right for Your Practice?
Choose the Star 430 SWL if:
- Your team follows a consistent post-patient protocol without shortcuts
- You have one person or a clear system responsible for handpiece maintenance
- You want lower repair costs and a longer service life from your investment
- You already have an established oiling routine and autoclave prep process
- You prefer the lowest long-term cost of ownership
Choose the Star 430 Lube-Free if:
- You want to remove the daily oiling step from your protocol
- Your practice uses an automated or high-volume sterilization workflow
- You can commit to weekly chuck cleaning and daily cleaning protocols
- You are confident your team can clearly identify and separate the two models to avoid accidental oiling
- You are willing to accept a higher repair cost in exchange for a simplified daily routine
Why Star Dental Handpiece Repair at Handpiece Express
Handpiece Express has been doing star dental handpiece repair since 1994, with over 140,000 handpieces repaired across all major brands. Both the Star 430 SWL and Lube-Free are regular visitors to the repair bench.
A few things that matter specifically for these models:
- Every high-speed rebuild uses ceramic bearings at no extra charge. Ceramic bearings outperform steel on heat resistance, smoothness, and longevity.
- Lube-Free repairs come with a 1-year warranty, the longest warranty in Handpiece Express’s standard service lineup.
- If your Lube-Free comes in with oil contamination, the technicians do a full chemical flush before rebuilding. That extra step is disclosed upfront, and you’ll receive a written estimate the same day your handpiece arrives.
- You can talk directly to the technician who worked on your handpiece. Call (800) 895-7111 any time.
- Free estimates, always. If you decline the repair, there’s no charge.
What to Do Next
- Identify which model you have
- Check the handpiece body or packaging for “SWL” (lubricated) or “Lube-Free” markings.
- If you’re unsure, call Handpiece Express at (800) 895-7111 before sending it in.
- Check your maintenance protocol
- For the SWL: confirm your team is oiling after every patient and running a 10-second air purge before every autoclave cycle.
- For the Lube-Free: confirm no oil is being applied to the turbine and that weekly chuck cleaning is on the schedule.
- Send it in if performance has changed
- Noise, vibration, reduced cutting speed, or a sticking chuck all point to bearing or chuck wear.
- Request a free mailer kit or call to get one sent out.
Note: If you suspect your Lube-Free has been oiled, even once , flag that when you send it in. It changes the repair approach and will be reflected in your written estimate before any work begins.
Send In Your Star 430 for a Free Estimate
Whether your handpiece needs a bearing replacement, a full turbine swap, or you just want it checked out before a bigger problem develops, Handpiece Express handles both Star 430 models with the same same-day turnaround and 100% satisfaction guarantee.
Written estimates go out the same day your handpiece arrives. Repair starts the same day the estimate is approved. If you decide not to move forward, there’s no charge.
📞 Call: (800) 895-7111
Frequently Asked Questions
The bearing design. The SWL uses open ceramic bearings that require oil after every patient. The Lube-Free uses sealed, permanently grease-packed ceramic bearings, the turbine itself should never be oiled. Both share the same body, head size, and autochuck system.
No. The turbine doesn’t need oil, but the handpiece still requires daily external cleaning, internal line clearing with isopropyl alcohol and syringe air before each sterilization cycle, and weekly push-button chuck cleaning using a product like Star’s Junk-Out kit. Skipping those steps leads to chuck debris buildup and seal degradation.
The oil strips the factory-sealed grease from the bearings, causing friction and heat. Once a Lube-Free turbine has been oiled, it must continue to be oiled for the rest of its life, you can’t reverse it. If you send a contaminated Lube-Free in for star dental handpiece repair, technicians will need to do a chemical flush before rebuilding, which adds time and cost.
